Transitioning from material selection to execution is the most critical phase of exterior or interior upgrading; the longevity of your investment relies entirely on structural execution. Improper installation of composite materials frequently results in thermal warping, moisture entrapment, structural failure, and voided manufacturer warranties. You can source the highest grade boards available, but poor application methods will ruin the final aesthetic and structural integrity. These failures rarely stem from the product itself. They happen due to skipped preparation steps or incorrect fastening techniques.
This guide provides a comprehensive, technically rigorous framework for installing WPC panels, detailing necessary site preparation, precise fastening techniques, and critical risk mitigation strategies to ensure a professional-grade, compliant finish. We cover everything from building a plumb substructure to managing thermal expansion gaps. You will learn how to handle different panel profiles, select the right fasteners, and avoid the common traps that ruin exterior facades.
Acclimation is Non-Negotiable: WPC materials require 48 to 72 hours of on-site acclimation to stabilize against local temperature and humidity levels before cutting.
Substructure Integrity Dictates Surface Quality: Panels must be mounted on properly spaced joists or furring strips (typically 12" to 16" on center) to allow for airflow and prevent moisture accumulation.
Thermal Expansion Requires Precision: Mandatory expansion gaps must be calculated and maintained at all butt joints and perimeters to accommodate natural material movement.
Fastening Systems Matter: Utilizing manufacturer-approved hidden fasteners and structural adhesives prevents surface penetration damage and ensures uniform load distribution.
Selecting the wrong panel profile or installing over an unprepared substrate guarantees premature failure, regardless of the fastening technique. Your fastening technique cannot compensate for a weak foundation. A wavy wall translates directly into a wavy finished surface. Trapped moisture behind the panels will rot the underlying structure over time. You must evaluate both the specific composite material you chose and the condition of the wall receiving it before driving a single screw. Contractors often skip substrate evaluation to save time, which leads to callbacks when the facade starts buckling months later.
Different profiles demand different handling and structural support. You must adjust your installation approach based on the specific product type you have on site.

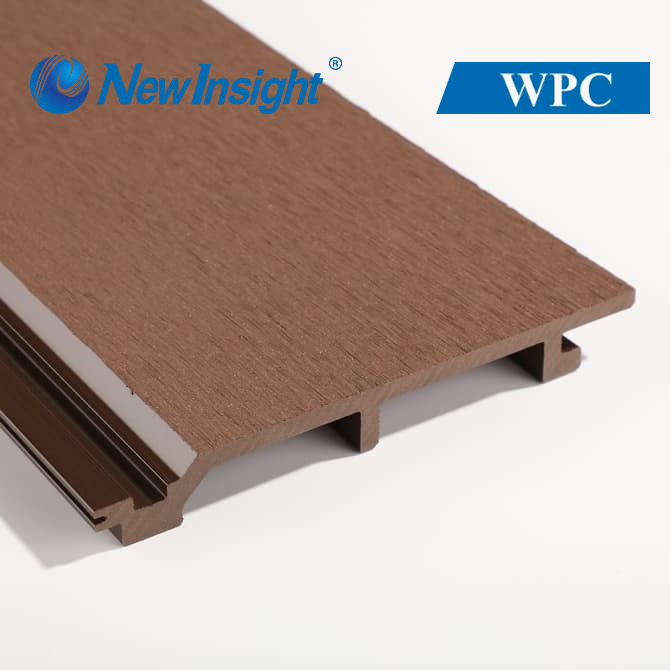

A traditional WPC wall cladding board features a solid core construction. This offers higher impact resistance against hail, debris, and physical strikes. However, the solid mass increases the overall weight per square foot. You need heavier load-bearing substructures and robust fasteners to support this dead load safely. Solid boards also hold more heat, meaning they expand and contract with greater force, requiring heavy-duty clips.

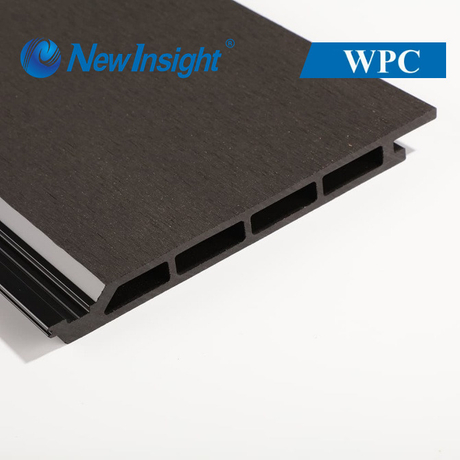

Conversely, a hollow composite wall panel utilizes internal chambers. This lighter weight significantly eases DIY installation and reduces structural strain on the building exterior. The trade-off involves cutting and fastening. You must use specific cutting techniques with fine-tooth blades to avoid crushing the internal webbing. Over-torquing screws on hollow boards can collapse the profile, meaning your impact driver needs to be set to a lower clutch setting.
Feature | Traditional Solid WPC | Hollow Chamber WPC |
|---|---|---|
Impact Resistance | High (Ideal for ground level and high-traffic zones) | Moderate (Ideal for upper elevations and ceilings) |
Weight per Square Foot | Heavy (Requires robust joists and structural screws) | Lightweight (Easier handling for single-person install) |
Cutting Complexity | Standard composite cutting methods apply | Requires care and fine-tooth blades to prevent web crushing |
Thermal Movement Force | Higher expansion force against fasteners | Slightly lower expansion force due to air chambers |

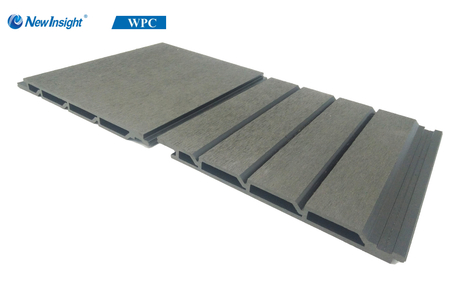

Using a wide WPC exterior wall panel changes the structural math. Wider boards cover surface area faster and provide a modern aesthetic with fewer visible seams. However, they catch more wind. You must evaluate local wind load ratings before proceeding. High wind zones require tighter joist spacing, often dropping from 16 inches on center down to 12 inches on center to prevent panel deflection during storms.
Wider panels also experience greater dimensional changes across their width during temperature swings. The visual trade-off for fewer seams is the necessity for slightly larger expansion gaps at the butt joints. You must calculate these tolerances precisely to prevent buckling during peak summer heat. Always check the manufacturer's technical data sheet for the specific expansion coefficient of wide-format boards.
Never install cladding directly over exposed framing or compromised sheathing. The wall must be plumb, flat, and structurally sound. Use a long level or a laser line to check for high or low spots across the wall plane. Shim low spots on your furring strips to create a perfectly flat mounting surface. A deviation of more than 1/4 inch over a 10-foot span will cause visible waves in the finished facade.
Exterior applications require a continuous weather-resistant barrier (WRB). Wrap the building envelope securely, overlapping seams according to local building codes. Apply flashing tape around all windows, doors, and wall penetrations. Install Z-flashing above all horizontal trim pieces and windows. Tape the top flange of the Z-flashing directly to the sheathing before pulling the WRB over it. This creates a shingle effect that sheds water away from the wall assembly. The cladding acts as the primary rain screen, but the WRB prevents residual water ingress from reaching the structural framing.
Professional results require professional-grade tools. Attempting to cut composite materials with dull or incorrect blades leads to melted edges, jagged cuts, and wasted material. Equip your crew with the following hardware before starting the job.
Precision Cutting Tools: Use a fine-tooth miter saw (minimum 80-tooth carbide blade) for clean crosscuts. A circular saw equipped with a composite-specific blade handles long rip cuts. Keep a heavy-duty utility knife ready for custom modifications and shaving tight corners.
Fastening Tools: Impact drivers provide the necessary torque control for securing clips. Pneumatic nailers can speed up the installation of certain hidden clip systems, provided you regulate the air pressure accurately to avoid driving fasteners through the clips.
Chemical Adhesives and Leveling: Keep high-quality, polyurethane-based construction adhesives on hand for securing trim pieces or reinforcing high-stress areas. Laser levels and chalk lines ensure your starter track remains perfectly horizontal.
Fitting Tools: Non-marring rubber mallets and tapping blocks are mandatory. They allow you to force interlocking joints together without denting or scratching the veneer.
Composite dust contains fine polymer and wood particles. Protect yourself during the fabrication phase. Wear a well-fitted N95 respirator when cutting panels. Safety glasses and heavy-duty work gloves protect against sharp cut edges and flying debris.
Site staging prevents material damage before installation even begins. Follow these site preparation steps strictly:
Clear a flat, dry area out of direct sunlight for material storage.
Lay down wooden pallets or dunnage every 24 inches to keep the boards off the ground.
Stack the panels flat, fully supported along their entire length. Never lean them vertically against a wall, as this induces permanent bowing.
Keep the materials covered with a breathable tarp to protect them from rain while allowing ventilation.
Allow the stack to sit undisturbed for 48 to 72 hours to acclimate to the local humidity and temperature.
Your cladding needs a skeleton. Install treated wood or metal joists perpendicular to the planned direction of your panels. If you want vertical cladding, run your furring strips horizontally. If you want horizontal cladding, install vertical joists. This creates the necessary rain screen gap.
Spacing requirements depend strictly on panel thickness and environmental load. Standard residential installations typically use 16-inch on-center spacing. For commercial applications, high-wind areas, or when using thinner hollow profiles, reduce this spacing to 12 inches. Secure the furring strips directly into the structural studs of the building using exterior-grade structural screws. Do not anchor solely into plywood sheathing, as it lacks the pull-out strength required to hold the facade during a storm.
When two panels meet end-to-end, never share a single clip. Sister a second furring strip alongside the first at the joint. This allows each panel end to have its own dedicated clip and proper support, preventing the ends from curling.
Accurate measurement prevents costly material waste. Measure the total run and account for expansion gaps at the top, bottom, and sides. Never jam a panel tight against a ceiling, floor, or adjacent wall. Leave room for the material to breathe.
When cutting, let the saw blade do the work. Plunge the blade smoothly and push at a steady pace to prevent melting the polymer core. Cut with the finished side facing up on a miter saw, but finished side down when using a handheld circular saw to minimize veneer chipping. Apply a strip of blue painter's tape over your cut line before sawing to further reduce tear-out on the visible face.
Retain clean scrap pieces. You can modify these offcuts into custom shims or thin connector strips. They prove invaluable for reinforcing non-standard joints or packing out uneven wall sections later in the process.
The first panel dictates the trajectory of the entire wall. If your starter board is out of plumb by a fraction of an inch, the error compounds with every subsequent row, resulting in a visibly crooked wall that requires complete disassembly to fix.
Strike a level chalk line at the base of your installation area. Install the metal or plastic starter track or starter clips along this line, securing them to every single furring strip. Seat the grooved edge of your first panel firmly into the starter clips. Check for level or plumb one final time with a 4-foot level before securing the opposite edge with the standard hidden fasteners.
Most WPC wall cladding utilizes a tongue-and-groove or shiplap interlocking mechanism. Slide the next panel onto the exposed tongue of the secured board. Place a tapping block against the outer edge and strike it gently with a rubber mallet. This forces the joint tight without damaging the locking mechanism.
Insert hidden fasteners into the groove at every joist intersection. Drive the screws flush with the clip. Do not over-torque the screw. The clip needs to hold the board securely against the furring strip while still allowing lateral movement for thermal expansion. Slide the next panel into place, concealing the fastener entirely.
For tricky seams where standard clips cannot fit, use a utility knife to cut thin strips from scrap paneling. Insert these strips as custom internal splines to lock two grooved edges together, ensuring joint strength without visible face screws. In high-traffic or high-wind areas, supplement the mechanical fasteners with construction adhesive. Apply the adhesive to the furring strips in a serpentine pattern. This wavy application prevents messy adhesive squeeze-out at the panel seams when pressure is applied.
Exposed edges look unprofessional and allow moisture to penetrate the core. Handle internal and external corners using dedicated corner trims. These L-shaped or F-shaped profiles snap or screw into place, covering the expansion gaps left at the wall edges.
For a custom look, you can miter the panel edges at 45 degrees to create a sharp outside corner. However, you must leave a micro-gap at the vertex to prevent the sharp edges from crushing each other during thermal expansion. Secure the final finishing trims to the substructure, not directly to the cladding panels, to maintain necessary airflow and expansion tolerances.
Composite materials expand when hot and contract when cold. Ignoring this physical reality leads to immediate structural failure. The primary risk is panels buckling, warping, or pulling away from the wall during extreme temperature shifts.
Mitigate this by calculating expansion gaps based on manufacturer specifications and local climate extremes. As a general rule, leave a 1/8-inch to 1/4-inch gap at all butt joints and perimeters. If installing in near-freezing temperatures, leave larger gaps, as the boards are fully contracted. If installing in peak summer heat, install them tighter, as they are already fully expanded.
Installation Temperature | Material State | Required Butt Joint Gap (Approximate) |
|---|---|---|
Below 40°F (4°C) | Fully Contracted | 1/4 inch (6mm) |
60°F to 75°F (15°C to 24°C) | Neutral | 3/16 inch (4.5mm) |
Above 90°F (32°C) | Fully Expanded | 1/16 inch to 1/8 inch (1.5mm to 3mm) |
Water will inevitably get behind exterior cladding during heavy storms. The risk involves mold growth, substrate rot, and structural decay due to trapped condensation or rain penetration.
You must ensure a continuous rain screen system. Do not seal the top and bottom of the wall airtight. Leave ventilation gaps at the base and the roofline. Install a bug screen mesh at these openings to keep insects out while allowing capillary moisture to drain out the bottom and trapped humid air to evaporate out the top. Proper airflow keeps the substructure dry and extends the life of the building envelope.
Panels detaching in high winds present a severe safety hazard. This usually happens due to incompatible adhesives or stripped screws anchored into weak materials.
Specify the use of exterior-grade, flexible polyurethane adhesives. Rigid adhesives will snap under thermal movement. Always use stainless steel or heavily coated exterior screws. Drive these fasteners directly into structural studs or solid wood furring strips. Fastening into drywall, foam board, or thin OSB sheathing guarantees pull-out failure during the first major weather event.
Many installers drive screws as tightly as possible, assuming tighter means stronger. Driving screws too tightly into hidden clips restricts the panel's ability to naturally expand and contract. The trapped board will inevitably bow outward or suffer stress fractures around the fastener.
Set your impact driver to a lower torque setting. The screw head should sit perfectly flush with the clip. The clip should hold the panel securely against the joist while still allowing micro-movements along the length of the board. If the clip bends or deforms, you have driven the screw too far.
Do not walk away immediately after driving the final screw. Conduct a thorough post-installation inspection to validate the structural integrity of the facade.
Verify plumb and level lines across the entire wall surface using a 6-foot level.
Check fastener torque randomly to ensure clips are not crushed or loose.
Inspect all expansion gaps at butt joints, corners, and perimeters. Clear out any sawdust, adhesive squeeze-out, or debris that might restrict movement.
Ensure the top and bottom ventilation gaps remain unobstructed for proper airflow.
Check all window and door flashing to confirm water is directed over the cladding, not behind it.
Composite cladding requires minimal maintenance, but improper cleaning can ruin the finish. Use mild soap and warm water with a soft-bristle brush to remove surface dirt. Never use bleach, abrasive solvents, or high-pressure power washers closer than 12 inches to the surface, as these will etch the polymer cap and fade the color.
Maintain your manufacturer warranty validity through proper documentation. Keep all material receipts. Photograph the WRB and substructure before installing the panels. Document the expansion gaps during installation with a tape measure in the frame. Manufacturers often require this proof of correct installation if a warranty claim arises years down the line.
Calculate your exact square footage and add a strict 10% overage for cutting waste and future repairs.
Order physical material samples to verify color consistency under your specific local lighting conditions.
Procure the exact hidden fastener systems and color-matched trims recommended by the manufacturer.
Map out your joist layout on the wall to identify potential obstacles before purchasing lumber.
Schedule your installation during a week with moderate temperatures to minimize extreme thermal expansion during the cutting phase.
A: Yes. You must install a substructure of joists or furring strips. This creates a mandatory capillary break and ventilation gap behind the panels. It prevents moisture accumulation, allows for thermal airflow, and provides a perfectly flat, secure fastening surface for the hidden clips.
A: Industry standards typically require a 1/8-inch to 1/4-inch expansion gap at all butt joints and wall perimeters. The exact measurement depends on the panel length and the ambient temperature during installation. Always consult the specific manufacturer's technical data sheet for precise gap calculations.
A: Direct application is strongly discouraged. Fastening directly to drywall or brick traps moisture, encourages mold growth, and restricts necessary airflow. Uneven brick surfaces will also cause the panels to warp. Always install treated furring strips first to create a plumb, ventilated mounting surface.
A: Use a miter saw or circular saw equipped with a fine-tooth carbide blade, ideally with 80 teeth or more. Cut slowly and steadily. Plunging the blade too fast will shatter the internal webbing or melt the polymer core, leaving a jagged, unusable edge.
A: Hidden fasteners are strictly necessary. Face-screwing penetrates the protective polymer cap, compromising the weather seal and inviting moisture into the core. It also restricts natural thermal movement, causing the boards to crack. Face-screwing almost always voids the manufacturer warranty.
A: Finish exposed edges using matching composite L-trims, end caps, or dedicated aluminum profiles designed specifically for your cladding system. These trims conceal the raw edges, protect the core from weather exposure, and hide the required perimeter expansion gaps for a clean visual finish.
