Views: 0 Author: Site Editor Publish Time: 2026-10-27 Origin: Site
Public-space WPC—whether decking on a transit platform, cladding on a school facade, or fencing around a municipal park—faces challenges that residential products are less often tested for. A dropped kebab, a permanent marker tag, a dragged metal bench, and a high-pressure cleaning crew are not occasional accidents. They are the operating environment.
The industry’s response has been a structural material change, not a surface treatment. Co-extrusion has moved WPC from a porous composite to a fully encapsulated polymer system. This article explains what that change actually delivers, how to verify it against the standards that matter, and how to select the right product for high-intensity commercial projects.
First-generation (uncapped) WPC performs well in residential and general outdoor environments, effectively solving the problems of timber rot and splinters. However, its exposed wood-fiber surface has certain operational limitations when facing the high-frequency, high-intensity abuse of public spaces.
Failure Mode | Mechanism | What Happens on Uncapped WPC |
|---|---|---|
Oil and food staining | Capillary action pulls lipids and pigments into the open-cell surface | Handles daily splashes well, but large amounts of cooking oil or red wine may penetrate if not cleaned promptly, making deep cleaning challenging. |
Graffiti and paint | Aerosol and marker pigment bond to the porous wood-fiber surface | Resists common stains, but permanent markers or spray paint can soak into the grain; aggressive chemical removal may affect the original surface texture. |
Scratch and abrasion | Grit, ultra-sharp metal, or heavy furniture drags create high-intensity friction | Withstands daily foot traffic, but dragging heavy equipment or deliberate scratching with sharp objects may leave visible marks. |
The key engineering problem: First-generation WPC is sufficient for residential environments, but lacks a robust "physical defense shield" when facing extreme commercial abuse.
Co-extrusion is not a laminate or a post-applied paint. It is a simultaneous extrusion process in which a dense polymer cap is molecularly bonded to the composite core at high temperature, typically around 190°C. The result is a board that behaves as a single structural unit with a sealed, non-porous exterior.

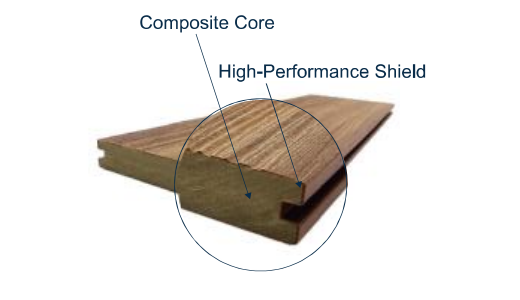

System Component | What It Is | Function in Commercial Service |
|---|---|---|
Core | Dense blend of wood fiber and polymer (commercial grades reference 60–75% hardwood fiber + HDPE) | Provides stiffness, load-bearing capacity, and impact resistance |
Cap (Shield) | High-performance polymer layer (HDPE or ASA) co-extruded around all four sides | Creates a 100% closed-cell, non-porous barrier; the functional surface for stain, graffiti, and scratch resistance |

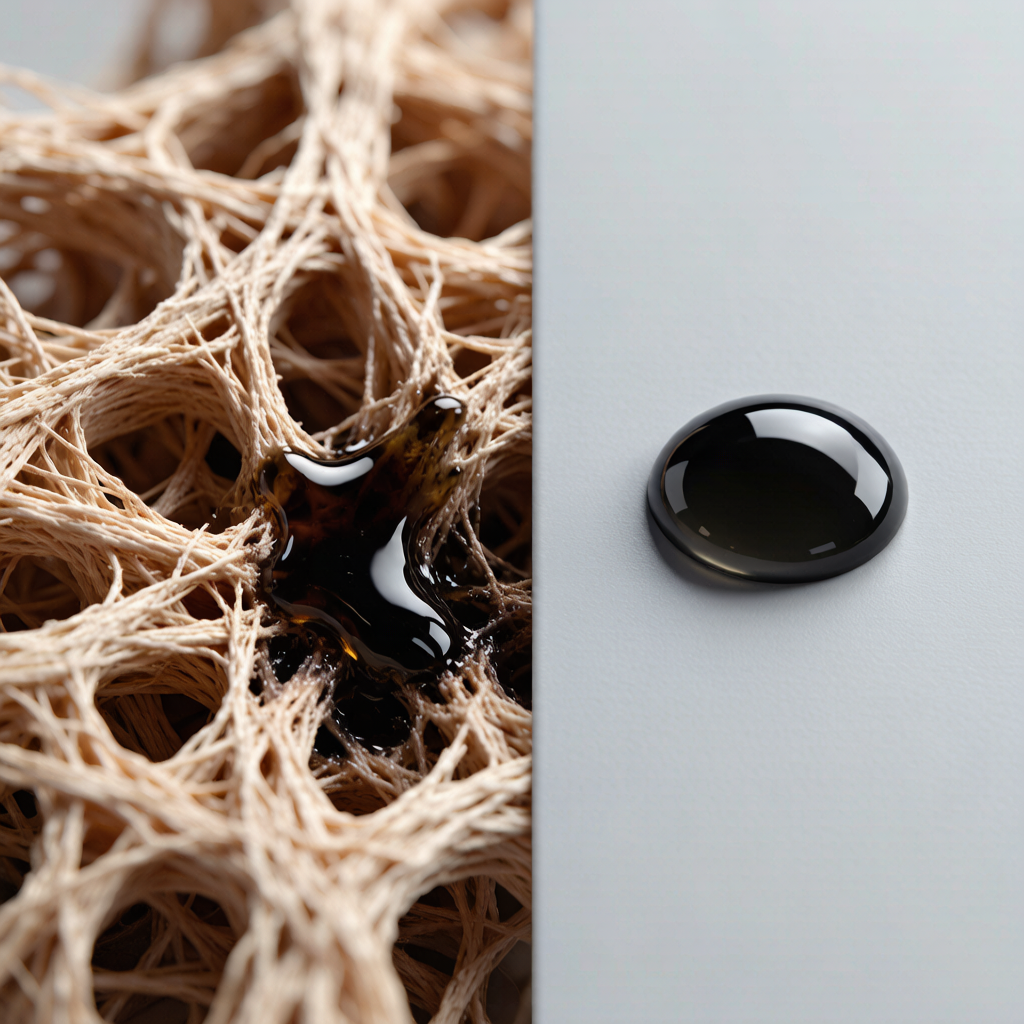

On an uncapped board, a liquid spill initiates capillary action: the open-cell structure may draw the substance into the fiber network. On a co-extruded board, the closed-cell polymer cap eliminates that pathway. Oil, wine, and paint sit entirely on the surface tension of the cap and cannot chemically bond with the underlying core.
The practical result is that cleaning changes from remediation to sanitation. A grease spill on a commercial-grade co-extruded board is addressed with a standard dishwashing liquid (degreaser), a five-minute dwell time, a nylon brush, and a hot-water flush—not with sanding or solvent stripping.
A commercial WPC specification should reference the following standards. Each targets a different failure mode, and each must be documented for the exact surface finish and profile being supplied—not for the material family as a whole.
ISO 4586-2 is the classification standard for scratch resistance of high-pressure decorative laminates and composite surfaces. Class 2 is the typical benchmark for commercial-grade co-extruded WPC.
Specification Criterion | What to Require | Why It Matters |
|---|---|---|
Scratch classification | ISO 4586-2 Class 2 (stated as a class number, not a qualitative claim) | Provides a comparable rating across bidders |
Surface hardness | Shore D > 70 for commercial infrastructure | Public spaces require resistance to indentation from heavy furniture and equipment |
Cap thickness and continuity | Full 360-degree encapsulation, including grooves and edges | A cap that does not wrap the edges leaves the core exposed at the most vulnerable points |
The honest limit: no polymer surface is "scratch-proof." The commercial objective is to select a cap resilient enough to repel surface scuffs and dense enough that deep gouges do not become permanent features of the installation.
ASTM D6578 evaluates whether a surface can be effectively restored after graffiti application, using standard spray paints and markers, followed by a specified solvent removal practice. A compliant surface must withstand up to five removal cycles with suitable solvents without permanent surface damage.
Oil resistance on co-extruded WPC is a direct function of the cap's non-porosity. The measurable proxy is water absorption, which correlates with the surface's ability to resist liquid ingress.
Metric | Uncapped WPC | Co-Extruded WPC | Specification Implication |
|---|---|---|---|
24-hour water absorption | 0.8%–2.0% | ≤ 0.2% on premium co-extruded boards | The lower the absorption, the less capillary pathway exists for oil and pigment ingress |
Cleaning protocol for grease | Sanding or solvent stripping required once absorbed | Degreaser + nylon brush + hot-water flush | Maintenance cost and surface damage diverge sharply between capped and uncapped systems |
Co-extrusion is not necessary for every project. The following table maps the application to the dominant risk, so the specifier can judge whether the commercial-grade upgrade is proportionate.
Application | Dominant Failure Risk | Why Co-Extruded WPC Fits | What to Verify |
|---|---|---|---|
Restaurant terraces and rooftop bars | Food grease, wine, furniture drag | Non-porous cap prevents oil bonding; scratch-resistant surface handles chair movement | ISO 4586-2 class; grease-cleaning protocol compatibility |
Public boardwalks and transit platforms | High footfall, cleaning equipment, graffiti | 360-degree encapsulation resists moisture and surface abrasion; ASTM D6578 restoration performance | Water absorption ≤ 0.2%; graffiti removal-cycle data |
School and hospital exteriors (cladding and fencing) | Marker tags, chemical cleaning, impact | Closed-cell surface prevents pigment penetration; co-extruded cap cannot delaminate in service | ASTM D6578 report; cap continuity at edges |
Municipal parks and civic furniture | Weathering, vandalism, whole-life cost accountability | ASA cap provides UV stability and color retention; reduced cleaning and replacement cycles | ASTM G155 color-change data |
Coastal and poolside installations | Chlorine, salt, sunscreen oils | Non-porous surface resists chemical ingress that stains open-cell boards | Chemical resistance confirmation against the specific pool chemicals used |
New Insight’s position on this specification is product-level and documentary, tied to the co-extrusion system itself.
Specification Requirement | New Insight Position |
|---|---|
Co-extrusion construction | Decking, cladding, and fencing profiles feature 360-degree full co-extrusion technology upgrades; the cap is integral to the profile and cannot delaminate in service. |
Surface performance | Product-level test documentation is available for scratch, stain, and weathering performance. |
Sustainable input | FSC dual certification for the wood fraction; supports public-sector and green-building procurement criteria. |
Product breadth | Decking, cladding, fencing, railing, and pergola within a single matrix, allowing a distributor or developer to coordinate the exterior envelope through one supply relationship. |
Where the boundary sits: New Insight is a product-level compliance and manufacturing partner. Where a public project requires a project-specific facade system approval or a bespoke chemical-resistance validation against a facility’s cleaning agents, that pathway remains with the party contractually responsible for the system. What New Insight provides is the co-extruded product layer—the sealed, non-porous surface that turns oil, paint, and abrasion from permanent damage into removable surface events—without relying on a sacrificial coating that has to be reapplied after every cleaning cycle.
